Cross talk

Near end and far end cross talk was measured and simulated for different arrangements. A 200 mV input signal and a signal rise time of 25 psec. were applied.

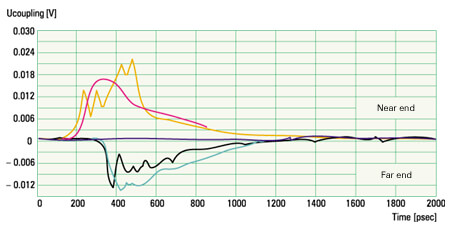

Cross talk from a pin in row d to an adjacent pin in row d (from C to G)

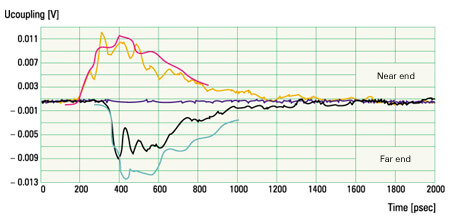

Cross talk from a pin in row d to a diagonally positioned pin in row e (from C to A or E)

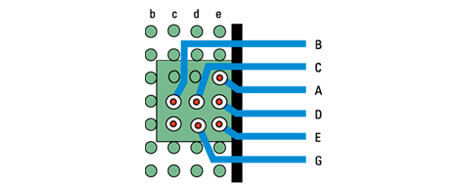

Setup for measuring
